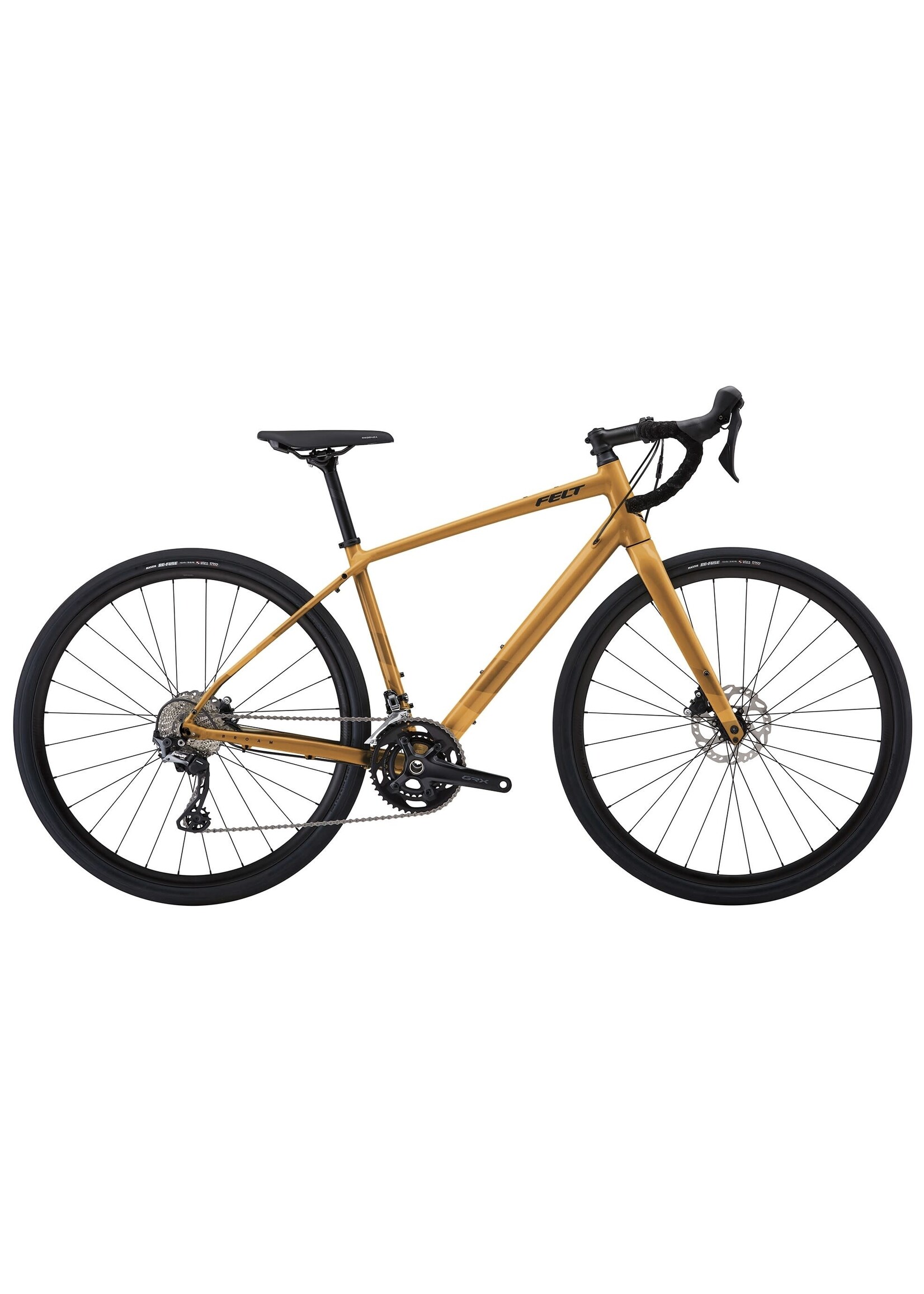

The top of the range Broam 30 is one of our favourite gravel bike options featuring a GRX build. Its an extremely versatile bike built for everything from bike packing adventures to commuting and everything in between.
SPECIFICATIONS:
| Version | BROAM | 1 |
| Model | BROAM | 30 |
| Sizes | 6 | 47, 51, 54, 56, 58, 61cm |
| Frame | Felt Adventure | SuperLite aluminum |
| Frame Technologies | Custom Butted tubing / Smooth welding |
| Bottom Bracket Type | Threaded | BSA 68mm |
| Brake Type, Rear | Disc, Flat Mount | Ø140mm minimum |
| Derailleur Hanger Type, Front | Band | Ø31.8mm |
| Derailleur Hanger Type, Rear | Standard Mount | TA 12x142 road, replaceable, aluminum |
| Head-Tube Type | Felt ControlTaper | 1.125-1.5" |
| Protector Type | Clear vinyl for chain slap protection |
| Routing Type | Internal | mechanical specific |
| Seat Post / Clamp Type | Standard | 27.2mm post, 31.8mm clamp / 6061 aluminum, steel bolt & nut-bar |
| Wheel Type | Specification: 700c / Compatible: 650b |
| Tire Max (Clearance) | 700c: 45mm (6mm) / 650b: 2.1" (6mm) |
| Fork | Felt Gravel - Adventure | UHC Performance carbon fiber with aluminum steerer tube |
| Headset | IS (NO.42) |
| Axle, Front | TA 12x100 |
| Axle, Rear | TA 12x142 |
| Brake Type, Front | Disc, Flat Mount | Ø140mm minimum |
| Fork Offset | 50mm |
| Headset Specification | Top Cap: Devox Variable Angle stem / Top Cover: Felt VariableHeight (20mm PC, 4.5mm aluminum) / Bearings: FSA integrated retainer / Spacers: FSA nylon (10mm, 2x5mm) / Compression Device: star nut for aluminum steerer tube / Crown Race: FSA alloy |
| Axle, Front Specification | Devox AxleTA 130.5 | 125mm + 5.5mm head, M12 x 1.5P x 17mm, Switch lever compatible |
| Axle, Rear Specification | Devox AxleTA 172-9 | 163mm + 9mm head, M12 x P1.0 x 19mm for Syntace X-12, Switch lever compatible |
| Speed | 2x11-speed |
| Shifters | Shimano GRX RX600 |
| Derailleur, Front | Shimano GRX RX810, braze-on with Ø31.8mm clamp adapter |
| Derailleur, Rear | Shimano GRX RX810 |
| Crank | Shimano GRX RX600, 46/30T |
| Bottom Bracket | Shimano RS500 |
| Cassette | Shimano 105 HG700, 11-34T |
| Chain | Shimano 105 HG601 |
| Crank Length | 47cm: 165mm / 51cm: 170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm |
| Brake Calipers | Shimano GRX RX400, hydraulic disc, flat mount |
| Brake Rotors | Shimano RT70, Center Lock, 160/140mm |
| Wheels | Devox WheelRDS.A1 with Shimano hubs | 23/21 |
| Tires | Maxxis Refuse with Max Shield, tubeless ready, 700x40c |
| Tire Compatibility | Tubeless Compatible |
| Rims | Aluminum |
| Rim Depth | 23mm |
| Rim Width, Inside | 21mm |
| Hub, Front | Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x100 |
| Hub, Rear | Shimano RS470 | J-Bend, Center Lock, 28h, TA 12x142, 11-speed |
| Spokes | J-Bend, 2.0, stainless steel, black |
| Nipples | Brass, black |
| Handlebar | Devox DBar.A2 GXA |
| Stem | Devox StemR.A2 VA |
| Grips / Tape | Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs |
| Handlebar Clamp Diameter | 31.8mm |
| Handlebar Drop | 130mm, 8° flare |
| Handlebar Reach | 86mm |
| Handlebar Width | 47cm: 40cm / 51cm: 42cm / 54cm: 44cm / 56, 58, 61cm: 46cm |
| Stem Clamp Diameter | 31.8mm |
| Stem Angle | ±8°/±16° |
| Stem Length | 47cm : 80mm / 51cm: 90mm / 54, 56cm: 100mm / 58cm: 110mm / 61cm: 120mm |
| Seatpost | Devox Post.A3 |
| Seatpost Offset | 0mm |
| Seatpost Length | 47, 51cm: 300mm / 54, 56, 58, 61cm: 330mm |
| Saddle | Selle Royal Essenza Gel |
| Weight | 23.23 lb, 10.56 kg |
