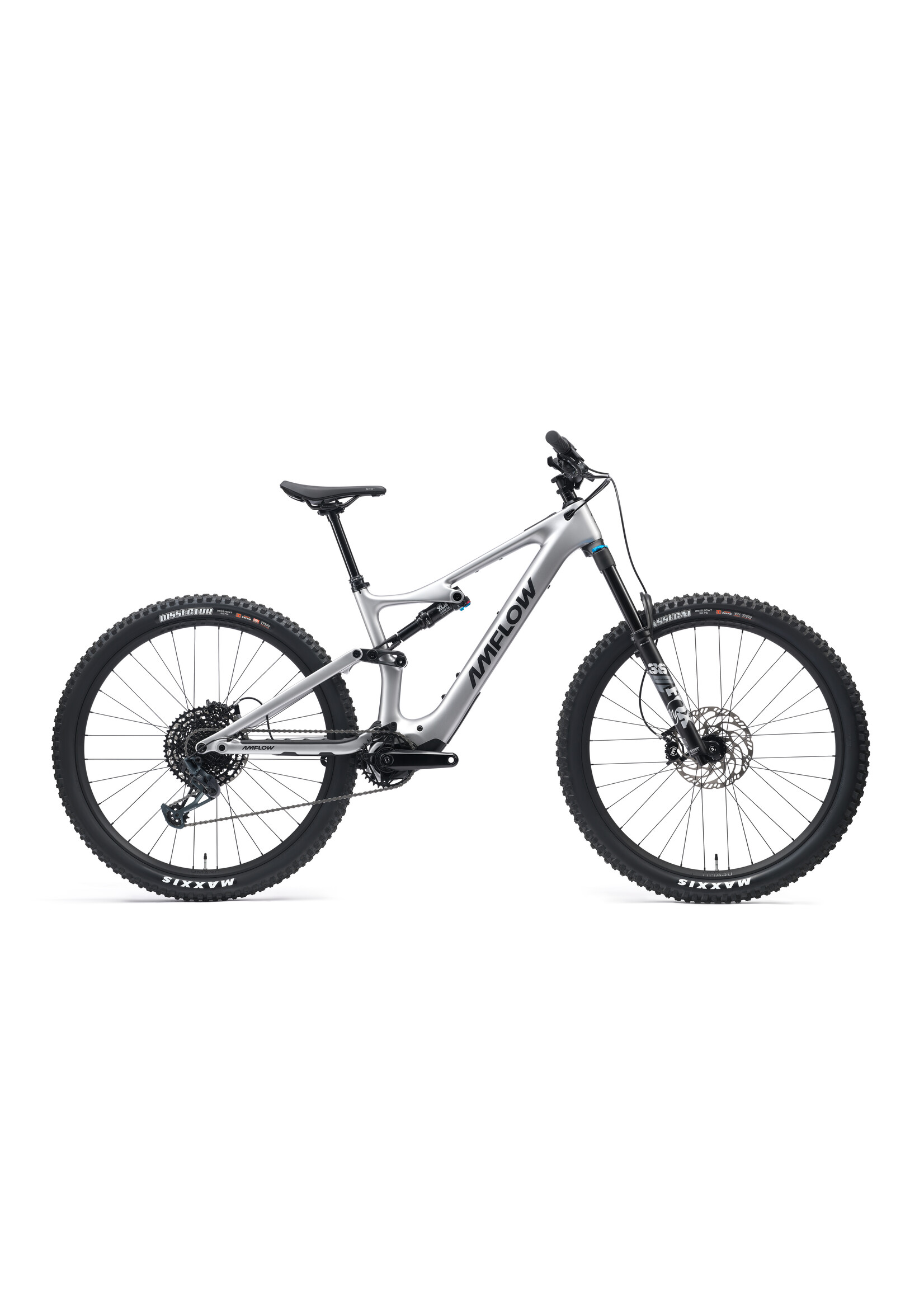

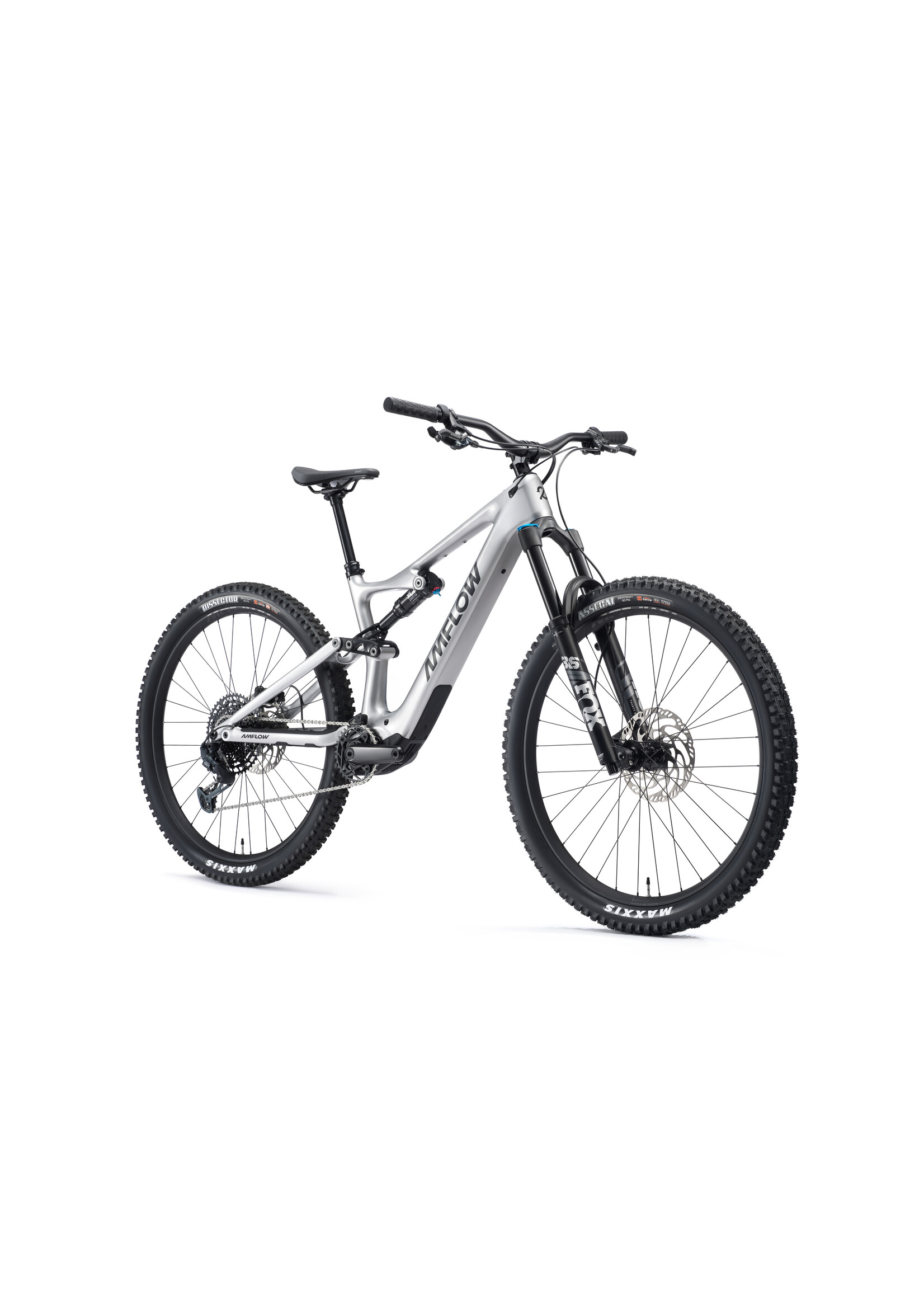

The Amflow PL Carbon is a lightweight, full-power eMTB built for riders who want big performance without compromise. Powered by the Avinox M1 motor delivering 105 N·m of torque and an 800 Wh battery, it offers long-range capability and responsive power on steep climbs. The carbon frame with 150 mm of rear travel and a FOX 36 Performance fork delivers confident control on technical descents. Outfitted with SRAM GX Eagle 12-speed shifting and Magura MT5 brakes, the PL Carbon blends reliability and precision for serious trail riders looking to go further and ride harder.

Amflow PL Carbon (800Wh) Specifications

Frame

• Amflow PL Carbon Frame

• Color: Satin Silver

• Rear Travel: 150mm

• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Motor: Avinox M1 Drive Unit — 105 N·m

• Display: Avinox 2-inch OLED Control Display

• Battery: Avinox Integrated Battery — 800Wh

• Controllers: Avinox Wireless Controllers (Right and Left)

• Charger: Avinox Fast Charger — 12A / 508W

Fork

• FOX 36 Performance

• 160mm travel, GRIP Damper, 15×110mm, 44mm rake

Rear Shock

• FOX Float Performance

• Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Transmission

• Rear Derailleur: SRAM GX Eagle 12-speed

• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

• Shifter: SRAM GX Eagle Trigger Shifter (Single Click)

• Cassette: SRAM PG-1230, 11-50T

• Chain: SRAM NX Eagle

• Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura MT5 Hydraulic Disc Brakes

• HC lever, 4-piston caliper with Shiftmix 3

• 203mm MDR-C Rotors (front and rear)

Wheels

• Amflow HMA-30

• Rims: Alloy, 29", 30mm internal width, 32H, tubeless ready

• Spokes: SAPIM E-Light J-bend

• Front Hub: Alloy, 15×110mm thru-axle, 32H, 6-bolt

• Rear Hub: Alloy, 148×12mm thru-axle, 32H, 6-bolt, 21T

Tires

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Cockpit

• Handlebar: Amflow Enduro Alloy Handlebar — 35mm rise, 800mm wide, 5° upsweep, 9° backsweep

• Grips: Amflow Enduro Grips

• Stem: Amflow Enduro Stem, One-piece CNC — 35mm length, 35mm clamp

Saddle & Seatpost

• Saddle: Selle Royal SRX Plus

• Seatpost: KS Rage-i

  • M: 150mm

  • L: 170mm

  • XL/XXL: 190mm

Accessories

• Quick Start Guide

• Torque Wrench (3–25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

• Shock Pump

• Front and Rear Lights
